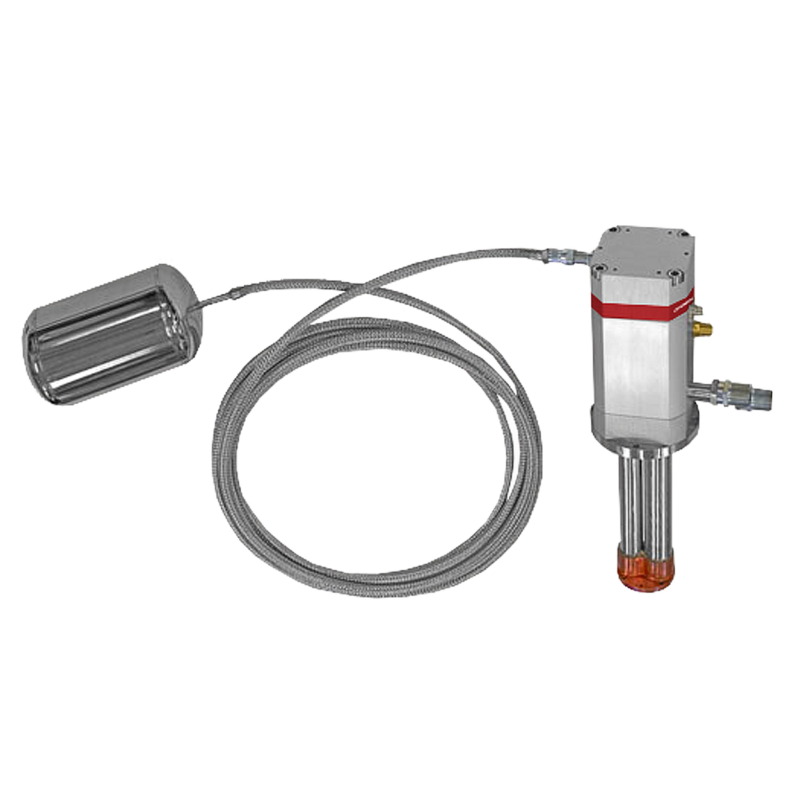

PT90

Pulse Tube Cryocooler

Technical Specifications


1.0

PT90

Pulse Tube Cryocooler


Parameter
Cooling Capacity90W @ 80K
Base Temperature32K
Cool Down Time15 MIN TO 80K
Cold Head Weight18lb (8.2kg)
Compressor PackageCPA2850
Water Cooled Weight243lb (110kg)
Water Cooled Dimensions19 X 18 X 24.5in (48 X 46 X 62cm)
Air Cooled Weight384lb (174kg)
Air Cooled Dimensions23.5 X 21 X 43in (60 X 54 X 109cm)
Power Consumption 60Hz (Input Power)200/230 OR 440/480 VAC / 3 PH / 5.0 kW
Power Consumption 50Hz (Input Power)200 OR 380/415 VAC / 3 PH / 4.3 kW
Cooling Water Requirements2.3 GPM (9 LPM) @ 80°F (27°C)
Flexible Lines10ft (3m)
Helium Pressure210 ± 5 PSIG (14.5 ± .34 bar) @60/50Hz
Ambient Temperature Range45°F TO 100°F (7°C TO 38°C)

Downloads


2.0

PT90

Pulse Tube Cryocooler

Custom Options

Scientific research often requires specialized equipment that has never been built before. We fully understand this, and are happy to build customized solutions for our customers and their unique applications.

Commonly provided customizations include:

  • Conflat Flanges
  • ISO Flanges
  • Gas Feed Throughs
  • Electrical Feed Throughs
  • Recondensing Heat Exchangers
  • Gas Pre-Cooling Tube
