Gifford-McMahon Cryocoolers

Cryocoolers

Cryomech is the Gifford in Gifford-McMahon. Cryomech’s founder William Gifford was part of the team that invented this technology over 60 years ago.

Highlights
20-30K Cryocoolers
80K Cryocoolers
Comparison Chart
Contact Sales

Since William Gifford developed the first commercial Gifford-McMahon Cryocooler in 1963, over 20 different baseline Cryomech models have been introduced for customers to choose from.

Whether you need 10 watts or 600 watts of cooling power, we guarantee there is a product that’s perfect for every application.

Product Highlights

1.0

Gifford-McMahon Cryocoolers

Cryocoolers

Extensive Warranty

Warranty of three years or 8 000 hours, whichever comes first.

Easy Maintenance

Most maintenance can be performed in the field. The mean time between maintenance is 10 000 hours.

Ideal for Recondensing Cryogens

Ideal for recondensing cryogens in the temperature range of 20 to 125K.

Widely Used Solutions

Cryomech Gifford-McMahon Cryocoolers are in operation on every continent.

20-30K Cryocoolers

2.0

Gifford-McMahon Cryocoolers

Cryocoolers

Model (Click to learn more)Compressor PackageCooling CapacityBase Temperature
AL63CP10318 W @ 30 K≤ 17 K
AL230CPA285060 W @ 30 K≤ 17 K
AL330CPA287094 W @ 30 K≤ 17 K
AL325CPA1110100 W @ 25 K≤ 17 K
AL630CPA1114100 W @ 20 K≤ 17 K

80K Cryocoolers

3.0

Gifford-McMahon Cryocoolers

Cryocoolers

Model (Click to learn more)Compressor PackageCooling CapacityBase Temperature
AL60CP10360 W @ 80 K≤ 25 K
AL125CP103120 W @ 80 K≤ 25 K
AL200CPA2850200 W @ 80 K≤ 25 K
AL300CPA2870320 W @ 80 K≤ 25 K
AL600CPA1114600 W @ 80 K≤ 25 K

Comparison Chart

4.0

Gifford-McMahon Cryocoolers

Cryocoolers

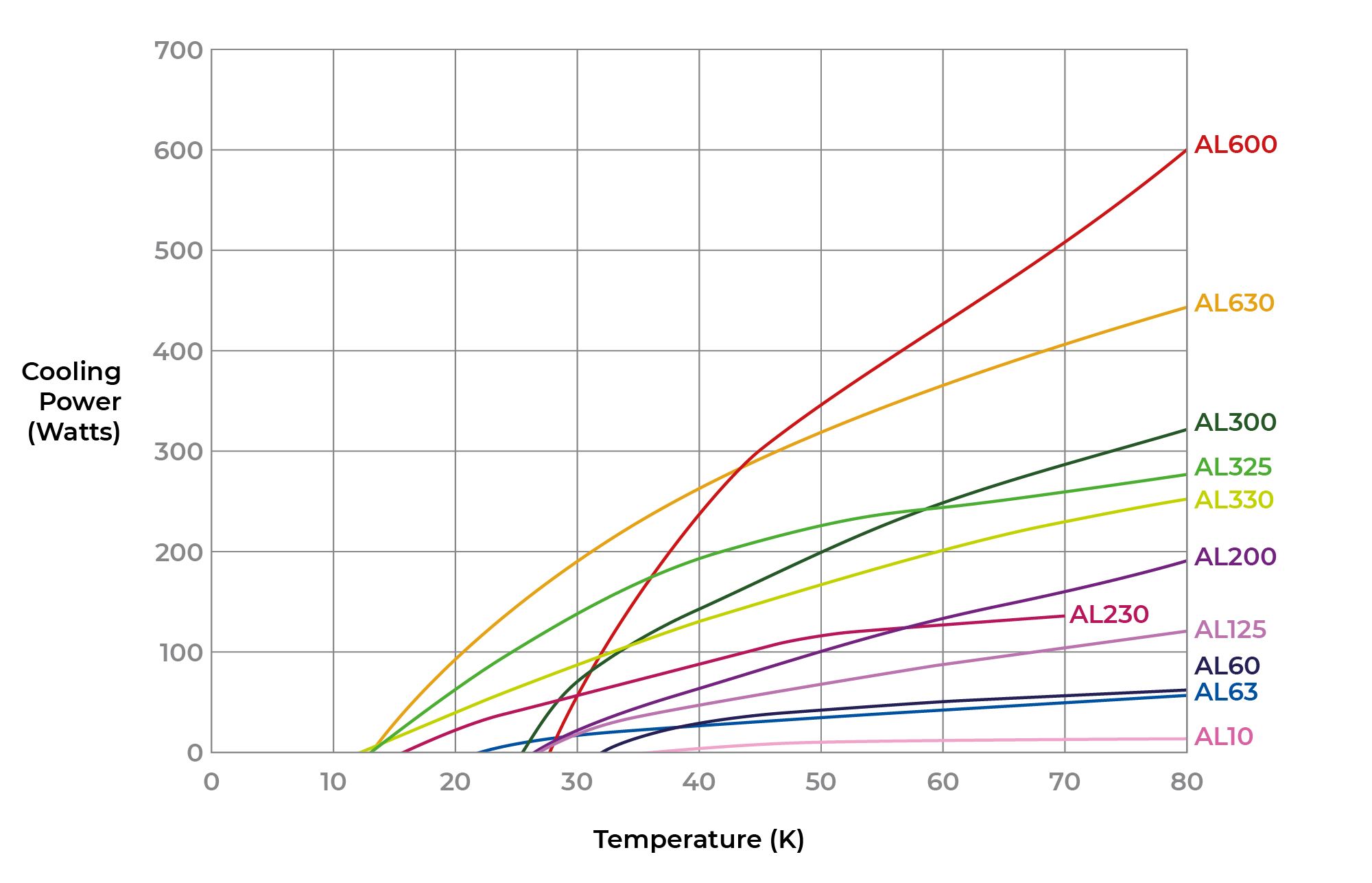

Below you can view a comparison chart of the cooling power provided at different temperatures by different models.

Options

Custom Options

Scientific research often requires specialized equipment that has never been built before. We fully understand this, and are happy to build customized solutions for our customers and their unique applications.

Commonly provided customizations include:

  • Conflat Flanges
  • ISO Flanges
  • Gas Feed Throughs
  • Electrical Feed Throughs
  • Recondensing Heat Exchangers
  • Gas Pre-Cooling Tube
