Helium Reliquefiers

Helium Liquefication

Helium Reliquefiers are intended for helium recovery from a single helium-consuming device.

Cryomech Helium Reliquefiers are designed to recondense the boil-off from liquid helium Dewar/Cryostats, returning the liquid helium to the Dewar/Cryostat to establish a closed helium loop.

The Reliquefier can be installed into Dewars filled with liquid helium or be utilized to liquefy helium gas from a gas cylinder to fill a Dewar.

Reliquefiers have been proven to integrate seamlessly into many different Cryostat designs. We have developed reliquefiers for use with highly sensitive MEG magnetometers, MPMS, PPMS, MRIs, NMRs, superconducting magnets and dilution refrigerators.

New Product

A New Helium Recovery Solution for Single NMR Units

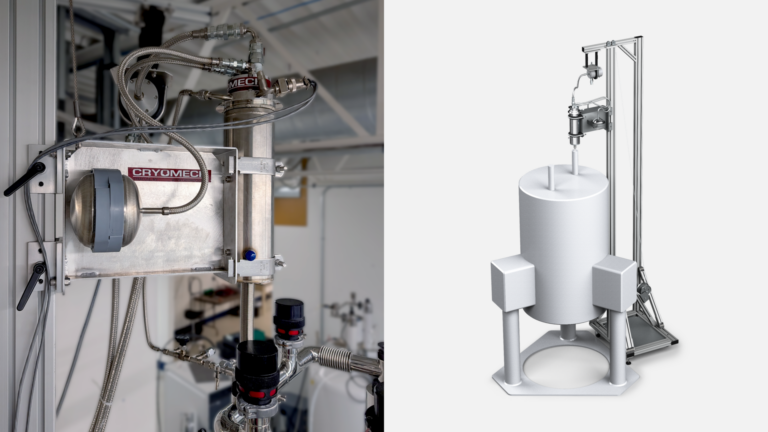

Cryomech HeRL02-RM is our new Helium Reliquefier designed for helium recovery from a single NMR instrument. It’s specifically designed to meet the capacity of an NMR magnet and employs vibration mitigation techniques that do not interfere with NMR spectroscopy.

HeRL02-RM Helium Reliquefier

Product Highlights

1.0

Helium Reliquefiers

Helium Liquefication

Easy Installation

Shipped assembled for ease of installation by an on-site technician. Easy drop-in installation through existing fill port.

Reliable and Care-Free

Cryomech Helium Reliquefiers can be operated 24 hours a day, seven days a week reliably, automatically and safely. The systems are powered by a Cryomech Pulse Tube Cryocooler, designed for high reliability with long mean times between maintenance, with warranty of three years or 12,000 hours on parts and materials offered.

Pressure Relief and Safety Valves

Pressure relief and safety valves are integrated into our design to ensure consistent and safe cryostat operating pressure.

Liquid Helium Return Line Connection

Standard Liquid Helium Return Line Connections. Custom configurations are available upon request.

Temperature Monitoring

Integrated temperature monitoring to ensure correct system operation with silicone diode temperature sensor, heater, and controllers.

Low Vibration Options

Designed with your most vibration-sensitive applications in mind, the HeRL can be modified to include a remote motor and flexible drainage leg. Ultra-low vibration reliquefiers are available for operation with NMR/MEG.

Helium Reliquefiers Models

2.0

Helium Reliquefiers

Helium Liquefication

Cooldown time for all Helium Reliquefier models is less than 4 hours.

Model (Click to learn more)	Liquefication Rate	Reliquefication and Recondensing Rate	Cryocooler Model	Power Consumption
HeRL02-RM	≥ 2.25 L/Day	≥ 7.5 L/Day	PT405-RM/CP2850	6 kW @ 60Hz 5 kW @ 50Hz
HeRL10	≥10 L/Day	≥18 L/Day	PT410/CPA289C	8.4 kW @ 60 Hz 7.9 kW @ 50 Hz
HeRL15	≥15 L/Day	≥27 L/Day	PT415/CPA1110	10.7 kW @ 60 Hz 9.2 kW @ 50 Hz
HeRL20	≥20 L/Day	≥40 L/Day	PT420/CPA1114	12.5 kW @ 60 Hz 11.4 kW @ 50 Hz
HeRL25	≥25 L/Day	≥45 L/Day	PT425/CPA1114	13 kW @ 60 Hz 12 kW @ 50 Hz
HeRL40	≥40 L/Day	TBD	PT420/ CPA1114 (2)	12.5 kW @ 60 Hz 11.4 kW @ 50 Hz
HeRL60	60 L/Day	TBD	PT420/ CPA1114 (3)	12.5 kW @ 60 Hz 11.4 kW @ 50 Hz

Options

Custom Options

Scientific research often requires specialized equipment that has never been built before. We fully understand this, and are happy to build customized solutions for our customers and their unique applications.

Commonly provided customizations include:

Conflat Flanges
ISO Flanges
Gas Feed Throughs
Electrical Feed Throughs
Recondensing Heat Exchangers
Gas Pre-Cooling Tube

Contact Sales

Compact Recovery System

The Cryomech Compact Recovery System is a cost-effective option for helium management, especially for low boil-off applications.

Liquid Helium Plants

Cryomech Liquid Helium Plants allow users to liquefy helium from any room temperature source, enabling liquid helium management.

Helium Recovery System

Cryomech Helium Recovery Systems enable laboratories to manage their helium consumption, providing large-scale helium recovery.
